To choose a 2 stage air compressor, match four numbers to your work: the CFM your tools need at the same time, the PSI they run at, a tank size that suits how you use air, and a power source your site can supply. Then check the duty cycle and the warranty. A 2 stage unit earns its higher price when you need up to 175 PSI, long run times, or several tools on one compressor.
Key takeaways
- Add up the CFM of every tool that runs at the same time, then add a margin.
- Compare CFM at the same PSI. A rating at 175 PSI is not the same number as a rating at 90 PSI.
- Tank size smooths out demand. It does not replace CFM.
- Pick your power source early: gas, single phase electric, or three phase electric.
- Check the duty cycle and read the warranty before you buy.
What is a 2 stage air compressor?
A 2 stage air compressor compresses air twice. The first, larger cylinder squeezes the air to a middle pressure. That air passes through a cooling line, then a smaller cylinder compresses it again to the final pressure. Cooling the air between stages lets the pump run cooler and reach higher pressure with less strain than a single stage pump.
The result is a compressor built for heavier, longer work. That is why you find 2 stage pumps on contractor rigs, service shops, and industrial lines.
2 stage vs single stage air compressors: when do you need two stages?
Most air tools are rated at 90 PSI, and a single stage compressor can supply that for light or occasional work. Move to a 2 stage unit when you need higher working pressure, steady use through the day, or enough air for more than one tool at once.
| Feature | Single stage | Two stage |
|---|---|---|
| Compression | Air is compressed once | Air is compressed twice, with cooling in between |
| Pressure | Fine for most 90 PSI tool work | Built for higher pressure, up to 175 PSI on the Mi-T-M models we sell |
| Heat | Runs hotter under load | Runs cooler under load |
| Best for | Light to moderate, on and off work | Heavier, longer, or multi tool work |
| Upfront cost | Lower | Higher |
If your work is light and occasional, a single stage unit may be all you need. You can compare options in our single stage air compressors collection.
How to choose a 2 stage air compressor in 6 steps
1. Add up the CFM you need
CFM is how much air the compressor delivers per minute. Every air tool lists the CFM it needs at a set pressure. Add up the tools that will run at the same time, then add a margin so the compressor is not working flat out. A common rule of thumb is a margin of roughly 25 to 40 percent.
Here is an example with made up numbers. If three tools that run together need 12, 5, and 3 CFM at 90 PSI, that is 20 CFM. Add a 30 percent margin and you are shopping for about 26 CFM. Use the numbers on your own tools, not these.
Compare ratings at the same pressure. Mi-T-M lists the AM2-PH09-08M at 17.2 CFM at 175 PSI. A piston compressor usually delivers more CFM at 90 PSI than its rating at 175 PSI, so check the spec sheet for the pressure your tools actually use.
2. Check the pressure (PSI)
Look at the PSI each tool needs and make sure the compressor covers the highest one. Also read how the pressure is regulated. The pump pressure and the pressure at your outlet are not always the same. For example, the AM2-PH09-08M cycles between 145 and 175 PSI, while Mi-T-M lists its regulator at 150 PSI maximum.
3. Pick the right tank size
The tank stores air so the pump does not have to start the moment you pull a trigger. A bigger tank means fewer start and stop cycles and steadier pressure during bursts of use. But a tank does not make up for low CFM. If your tools use more air than the pump delivers, a big tank only delays the pressure drop.
As a rough guide, 8 gallon units suit portable job site work, 30 gallon base mount units suit service trailers and smaller shops, and 80 gallon units suit fixed shops with several people on the air. Mi-T-M's two stage compressor line covers tanks from 8 to 120 gallons, gas or electric.
4. Choose your power source
Gas engines need no power supply, which suits job sites and mobile work. Electric units suit indoor shops because there are no engine fumes. Three phase electric units need three phase service at your building, so have an electrician confirm your service, voltage, and breaker before you order.
5. Check the duty cycle and the pump
Duty cycle is how much of each hour a compressor can run. Cast iron, belt driven 2 stage pumps are built for heavier use than light duty pumps, but every model has a limit. Check the manufacturer's duty cycle for the exact model. Piston compressors are not meant to run nonstop, so if you need air all day with no breaks, size up or ask about other compressor types.
6. Read the warranty and plan for support
Read the warranty on both the engine or motor and the pump. The AM2-PH09-08M, for example, lists a 3 year Honda engine warranty and a 2 year pump warranty. Also confirm you can get parts and help for the brand you buy.
Which 2 stage air compressor fits your work?
Contractors and mobile crews

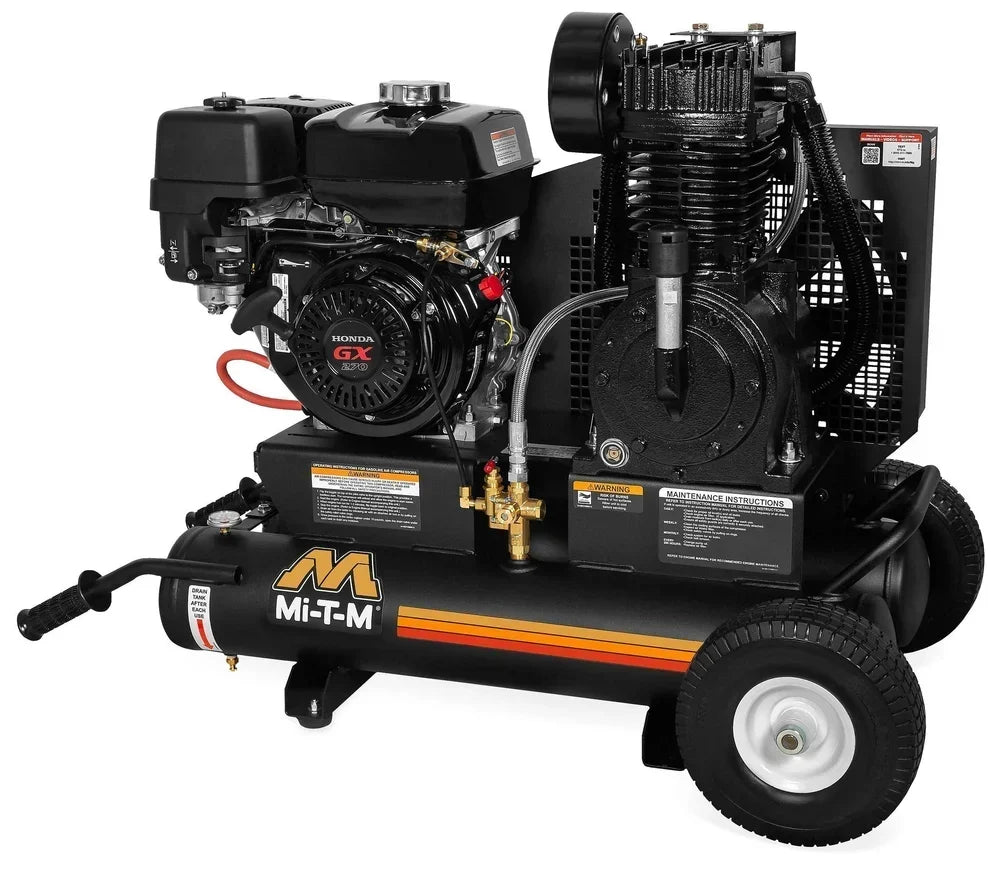

For job site work, a portable 8 gallon unit is a common starting point. The Mi-T-M AM2-PH09-08M puts out 17.2 CFM at 175 PSI from a 270cc Honda GX270 engine and a cast iron, belt driven 2 stage pump. It has a wheelbarrow style frame so it rolls around a site, and Mi-T-M lists it for tools like air hammers, impact wrenches, pneumatic drills, and paint sprayers. See Mi-T-M's own spec listing for the AM2-PH09-08M for the full details, and check each tool's CFM first using step 1.
Auto and body shops
Shops that run several air tools at once usually move up to 30 or 80 gallon tanks. In our catalog, the Mi-T-M ABS-14M-30H pairs a 30 gallon tank with 29.0 CFM at 175 PSI, the 80 gallon ABS-13H-80H gas model lists 29.0 CFM, and there are 80 gallon electric two stage models as well. Browse our auto and body shop air compressors to compare them. If you are weighing tank sizes, read why an 80 gallon air compressor is the workhorse your auto shop can't live without.
Fleets and industrial buyers
Buying for several trucks, shops, or a facility? Use our bulk order request and tell us what each location needs.
Common mistakes when choosing a 2 stage air compressor
- Buying on horsepower. Horsepower does not tell you how much air you get. CFM at a stated PSI does.
- Comparing CFM at different pressures. Make sure every rating you compare is at the same PSI.
- Treating the tank as a fix for low CFM. A bigger tank buys time, not airflow.
- Ordering before checking power. Confirm your fuel plan or your electrical service first.
Frequently asked questions
When do I need a 2 stage air compressor instead of a single stage?
Choose a 2 stage unit when you need higher working pressure, longer run times, or enough air for several tools at once. For light, occasional work at 90 PSI, a single stage unit is often enough.
Is a 2 stage air compressor better than a single stage?
Not always. A 2 stage compressor runs cooler and handles heavier work, but it costs more upfront. It is the better pick when your work demands it, and not worth the extra cost for light use.
How many CFM do I need?
Add up the CFM of the tools that run at the same time, at the pressure they use, then add a margin of roughly 25 to 40 percent.
What size tank do I need for a 2 stage air compressor?
Match the tank to how you work. As a rough guide, 8 gallons for portable job site work, 30 gallons for service trailers and small shops, and 80 gallons for fixed shops with several users. Tank size does not replace CFM.
Can a 2 stage air compressor run continuously?
Piston compressors are not built to run nonstop. Check the duty cycle for your model, and if you need constant air, size up or ask about other compressor types.
Not sure which 2 stage air compressor fits?
Tell us your tools, your power setup, and how many people share the air, and we will point you to a model. Call (833) 767-8247 Monday to Friday, 9 AM to 5 PM CST, or contact our team. Ready to compare? Browse our two stage air compressors.
