In the single stage vs two stage air compressor debate, the real difference is how many times the air is compressed before it reaches the tank. A single stage pump compresses it once. A two stage pump compresses it twice, with cooling in between. Single stage units fit lighter, occasional work at normal tool pressures. Two stage units fit heavier work, longer run times, and higher pressure.
Key takeaways
- Single stage compresses air once. Two stage compresses it twice and cools it in between.
- Single stage costs less and fits light, occasional work.
- Two stage is built for higher pressure, longer run times, and heavier use.
- Stages and cylinders are not the same thing. Count the stages, not the cylinders.
- Compare CFM at the same PSI before you decide. Stage count and horsepower alone do not tell you how much air you get.
What is the difference between a single stage and a two stage air compressor?
In a single stage compressor, a piston draws air in and squeezes it to full pressure in one step, then sends it to the tank. In a two stage compressor, a larger cylinder squeezes the air to a middle pressure first. That air passes through a cooling tube, called an intercooler, and a smaller cylinder squeezes it again to final pressure.
Cooling the air between stages is the point. It reduces heat and strain on the pump, which is why two stage pumps suit heavier, longer work.
Stages are not the same as cylinders
A common mix-up is counting cylinders. A single stage pump can have two cylinders, and each one compresses air to full pressure on its own. In a two stage pump, the second cylinder takes air the first one already compressed. The number of cylinders does not tell you the number of stages. ABAC covers this in its guide to single and two stage compressors, and the spec sheet will always state the stages.
Single stage vs two stage air compressors compared
| Feature | Single stage | Two stage |
|---|---|---|
| How it compresses | Once, to full pressure | Twice, with cooling between stages |
| Pressure | Lower maximum pressure, fine for most 90 PSI tool work | Built for higher pressure, up to 175 PSI on the Mi-T-M models we sell |
| Run time | Best for short, on and off use | Better suited to longer, heavier use |
| Heat | More heat in the pump under load | Cooler pump because of the intercooler |
| Upfront cost | Lower | Higher |
| Best for | Home shops, light trade work, small mobile jobs | Busy shops, multi tool work, higher pressure jobs |
| In our catalog | 5, 8, and 20 gallon Mi-T-M units | 8, 30, and 80 gallon Mi-T-M units |
When a single stage air compressor is enough
Most air tools are rated for about 90 PSI, and a single stage compressor can supply that for the right kind of work. It is usually enough when:
- You run one tool at a time, in short bursts.
- Your work is light to moderate, like tire inflation, small repairs, and nailers.
- You want the lowest upfront cost.
- You need a smaller unit that is easier to move.

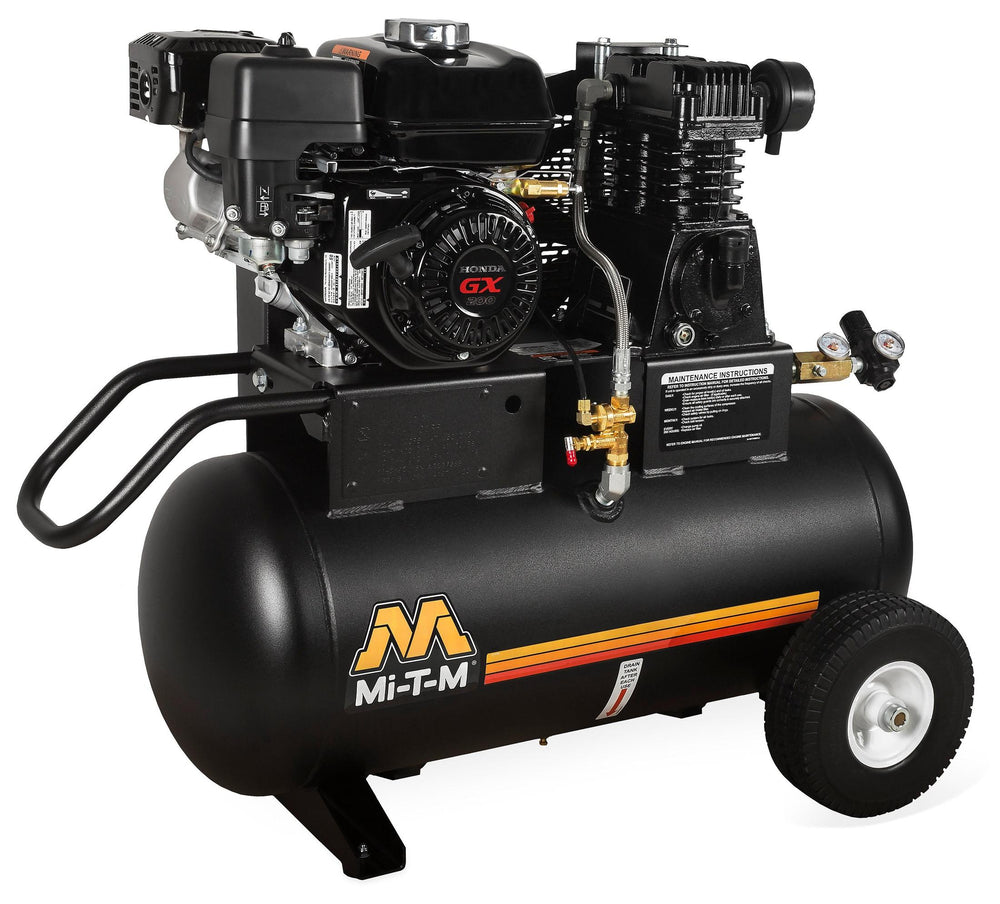

In our catalog, single stage options start with 5 gallon units like the Mi-T-M AM1-HH04-05M, a gas powered Honda engine unit listed at 4.8 CFM. There is also an electric 5 gallon option, the AM1-HE02-05M. Larger units go up to 20 gallons, like the AM1-PH65-20M with a Honda GX200 engine. Browse all of our single stage air compressors to compare them.
When a two stage air compressor is worth the extra cost
A two stage unit earns its higher price when the work gets heavier. It is usually the better pick when:
- You need higher working pressure.
- Several tools run at once, or the compressor runs for long stretches.
- More than one person shares the air in a shop.
- You want a pump built to run cooler under load.

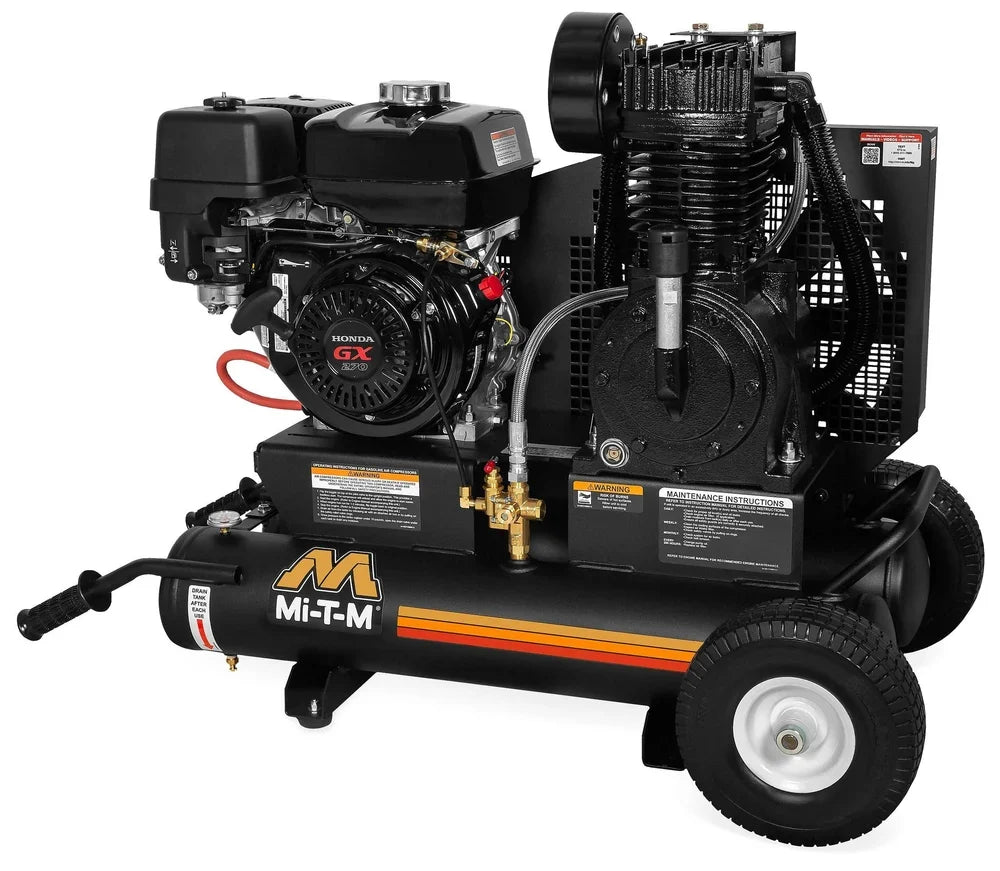

For portable two stage power, the Mi-T-M AM2-PH09-08M delivers 17.2 CFM at 175 PSI from an 8 gallon tank. Shops that need more air step up to 30 and 80 gallon units. See all of our two stage air compressors, or read our guide on how to choose a 2 stage air compressor to size one. For the manufacturer's view, see Mi-T-M's two stage compressor line.
Common myths about single stage vs two stage compressors
- "Two stage always means more air." Not automatically. CFM depends on the pump and its speed, and a rating means little without the PSI next to it. Compare ratings at the same pressure.
- "More cylinders means two stage." No. Stages are how many times the air is compressed, not how many cylinders the pump has.
- "A two stage compressor can run nonstop." Piston compressors are not built to run nonstop. Check the duty cycle for your model.
- "Horsepower tells you how much air you get." Horsepower describes the motor or engine. CFM at a stated PSI describes the air.
Which one should you buy?
- Garage, hobby, or light repairs: single stage.
- Mobile contractor with light to moderate tools: single stage, or a small two stage if you need higher pressure.
- Busy shop with several people on air: two stage, sized by CFM.
- Air needed most of the day: a larger two stage unit, and ask about other compressor types for constant demand.
Frequently asked questions
What is the main difference between single stage and two stage air compressors?
A single stage compressor compresses air once. A two stage compressor compresses it twice and cools it in between, which lets it reach higher pressure and handle heavier use.
Is a two stage air compressor better than a single stage?
Not always. Two stage units cost more and suit heavier work. For light or occasional use, a single stage unit is often the better value.
How can I tell if an air compressor is single stage or two stage?
Check the spec sheet first. On the pump, a two stage unit has a larger and a smaller cylinder joined by a cooling tube. Do not count cylinders, since single stage pumps can have two.
Does a two stage compressor deliver more CFM?
Not automatically. CFM depends on the pump and its speed, and it changes with pressure. Compare CFM ratings at the same PSI.
When should I choose a single stage compressor?
Choose single stage for light, occasional work at about 90 PSI, one tool at a time, when upfront cost and size matter most.
