AIR COMPRESSORS 20 GALLON BUILT FOR RELIABLE PERFORMANCE

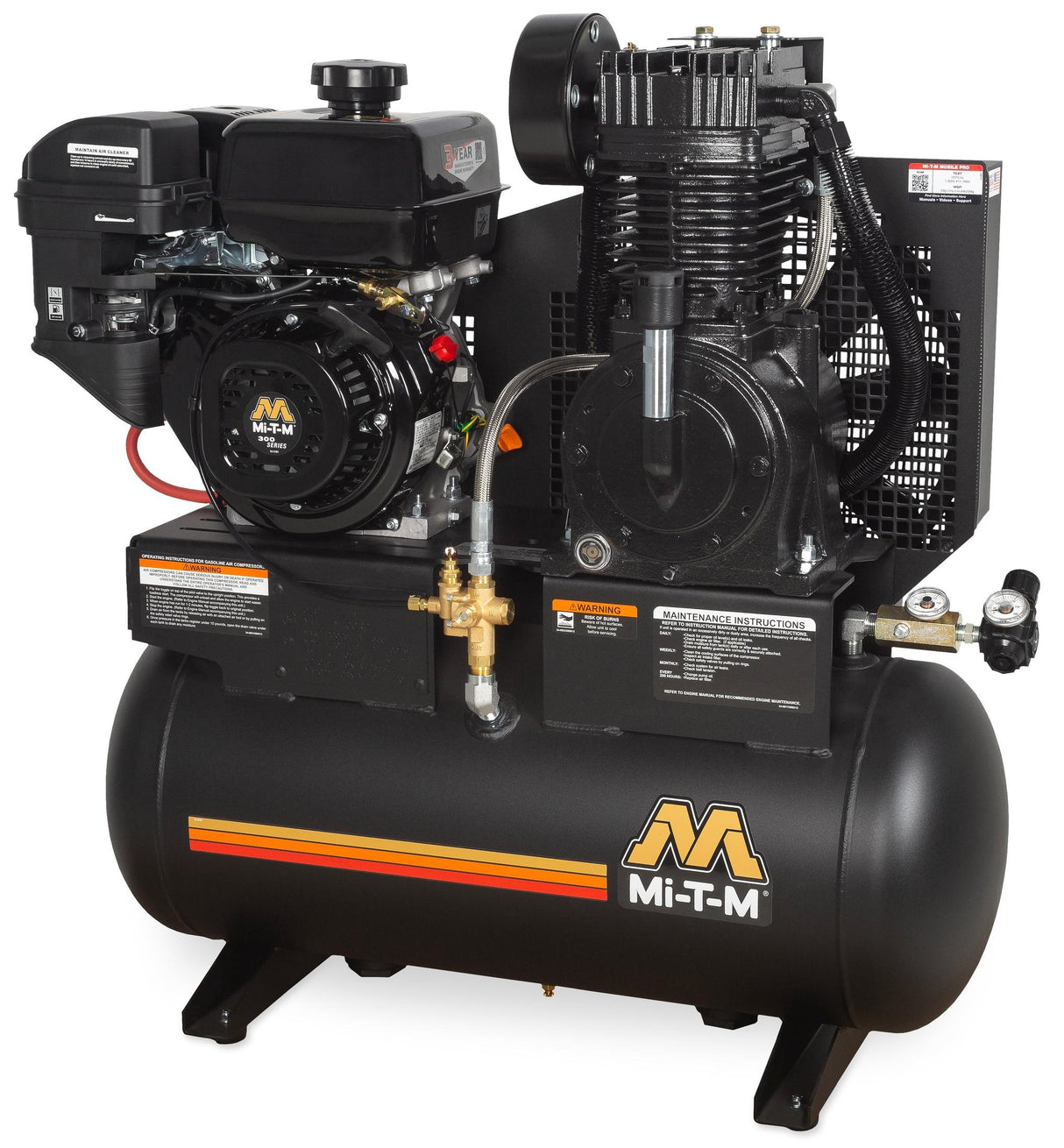

The Mi-T-M AM2-SM09-20M is one of the most capable air compressors 20 gallon in its class — designed to deliver consistent pressure, extended tool run times, and heavy-duty jobsite mobility. Powered by a 300cc Mi-T-M OHV cable throttle engine, this unit is ready for all-day work in the shop, on the road, or in the field.

It produces 17.2 CFM at 175 PSI, making it powerful enough to operate two air tools simultaneously. From framing guns to air grinders and paint sprayers, this system handles high-demand applications without blinking.

What sets it apart is its 20 gallon air compressor tank, which stores more air for longer tool cycles and fewer interruptions. The two-stage cast iron pump compresses air in two steps — increasing pressure output while keeping operating temps lower. Splash lubrication and belt drive design reduce wear and extend service life.

The wheelbarrow-style steel frame and 10-inch flat-free tires give this unit portability without compromise. Its compact footprint and 3/16-inch base plate reduce vibration and make it easy to transport across tough terrain or load into a truck.

Pneumatic idle control helps reduce engine wear and save fuel when tools disengage. That’s value and performance working together — exactly what you expect from a Mi-T-M.

Specifications

Features

• 300cc Mi-T-M OHV engine with cable throttle

• Two-stage, belt-driven cast iron pump

• 20 gallon air compressor tank with horizontal twin design

• Flat-free 10” tires on a steel wheelbarrow frame

• 3/16” steel base plate for vibration control

• Pneumatic idle control for fuel efficiency

• Dual gauges, manual drains, and pilot valve unloader

Benefits

• Extended air reserve reduces cycle time

• Rugged frame built for jobsite mobility

• Powers two tools with steady PSI

• Engineered for high-demand daily use

• Fuel-saving idle mode reduces wear

• Runs cooler with two-stage compression

Additional Information

• This 20 gallon air compressor tank provides the power, volume, and runtime contractors and industrial techs need without stepping up to a stationary unit.

• Designed to be truck-mountable or mobile with flat-free tires, this compressor is flexible enough to work anywhere.

• Its 17.2 CFM output supports heavy-duty pneumatic tools for body shops, framing crews, and paint contractors.

• The two-stage design improves both performance and longevity by reducing heat during operation.

• For any crew needing professional-grade output from a mobile unit, this compressor is a proven solution.

• Browse our top-rated Air Compressors 20 Gallon


• Explore Gas Powered Two Stage Air Compressors for higher CFM options

FAQ

Q: Can I use this compressor for running two air tools at once?
A: Yes — with 17.2 CFM output, it's designed for dual-tool setups.

Q: What’s the benefit of a 20 gallon tank versus smaller sizes?
A: More air reserve equals longer run time, fewer cycles, and steadier pressure.

Q: How mobile is this compressor?
A: The wheelbarrow frame and flat-free tires make it ideal for rugged jobsites and truck mounting.

Q: What kind of maintenance does it require?
A: Keep the oil level in check, inspect the intake filter, and drain the tanks regularly — all easily accessible.

➡️ Learn more about this air compressors 20 gallon model and compare others in our industrial two-stage collection

Tank Size: 20 Gallons

Max PSI: 175 PSI

Engine: 300cc Mi-T-M OHV

CFM: 17.2 @ 175 PSI

Drive Type: Belt Drive

Starting System: Recoil (Manual Pull)

Weight: 306 lbs (Net), 356 lbs (Shipping)

Dimensions: 37" L x 18" W x 38" H

Pump Type: Cast iron cylinder, splash-lubricated

Additional Features: Stainless-steel braided discharge hose, large canister intake filter, oil level sight indicator

Best For:

• Service Trucks & Remote Operations – Designed for mounting in service trucks or trailers, making it ideal for servicing large equipment in remote locations.
• Industrial Applications – Provides consistent high-pressure air suitable for various industrial tasks and machinery operations.
• Construction Projects – Perfect for powering pneumatic tools such as nail guns, impact wrenches, and spray guns on construction sites.

The Mi-T-M AM2-SM09-20M stands out for its combination of power, durability, and portability. Its 20-gallon ASME receiver tank offers substantial air storage, reducing the frequency of motor restarts and ensuring a steady supply of compressed air for demanding tasks.

The robust 300cc Mi-T-M OHV engine delivers reliable performance, while the durable cast iron pump with splash lubrication extends the unit's lifespan. Designed for easy mounting in service trucks or trailers, this compressor is ideal for professionals who require reliable and efficient air compression in remote or on-site locations.

Whether you're involved in industrial maintenance, construction, or field service, the AM2-SM09-20M provides the power and capacity needed to keep your operations running smoothly.
