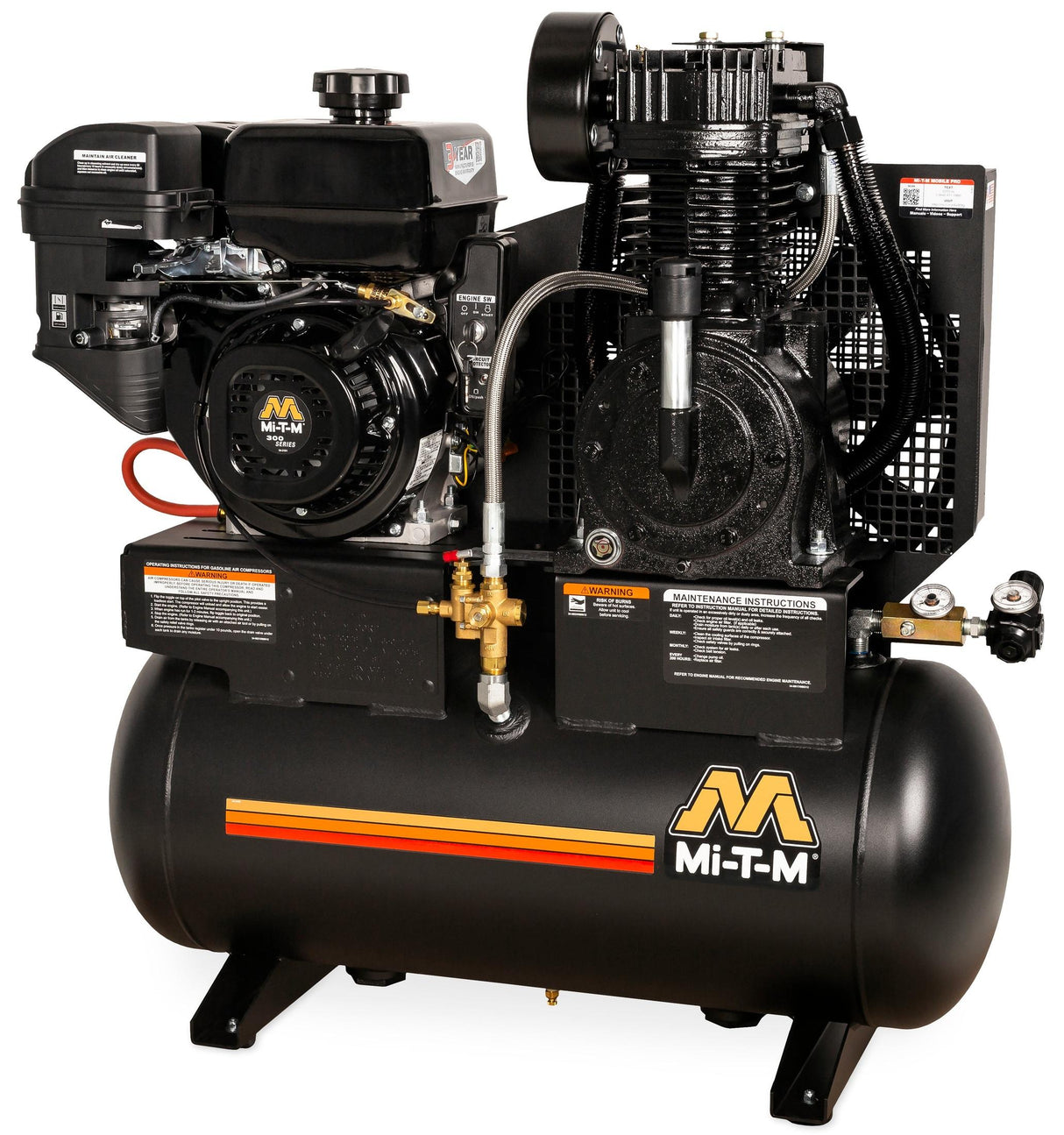

20 GALLON AIR COMPRESSOR WITH TRUE STARTUP POWER

The Mi-T-M AM2-SM09-20ME is built for pros who don’t have time to waste on cold starts or weak pressure. This 20 gallon air compressor comes with electric start, a two-stage cast iron pump, and serious CFM — giving you everything you need in one portable, powerhouse machine.

Under the hood, you’re getting a 300cc Mi-T-M OHV engine with electric start — making it easy to get moving, even in the cold. At 17.2 CFM @ 175 PSI, this unit delivers enough air to run framing tools, grinders, and spray systems without pressure drop or cycling interruption.

The 20 gallon horizontal tank holds more air, which means longer tool operation with fewer stops for recovery. Pair that with the two-stage splash-lubricated pump, and you’ve got a system that runs cooler, lasts longer, and performs harder.

Mobility is handled by a wheelbarrow-style frame with 10” flat-free tires and a 3/16” steel base plate — built to take jobsite abuse while keeping the compressor stable and easy to roll. The pneumatic idle control kicks in when tools disengage, helping reduce fuel usage and noise while extending engine life.

For contractors, mobile crews, and techs who need a 20 gallon air compressor that starts easy, runs hard, and stays moving — this is your machine.

Specifications

Features

• 300cc Mi-T-M OHV engine with electric start

• Belt-driven, two-stage cast iron pump

• 20 gallon twin horizontal tank design

• Flat-free tires and steel wheelbarrow frame

• Pneumatic idle control for quieter operation

• Dual pressure gauges, regulator, manual drains, pilot valve

Benefits

• Push-button electric startup

• Long tool runtime with large air reserve

• Built for dual-tool use under pressure

• Handles rugged jobsite mobility

• Runs cooler with two-stage compression

• Reduced downtime with fast pressure recovery

Additional Information

• Designed for portable high-capacity air output, this 20 gallon air compressor is ideal for job site framing, spray systems, mobile repair, and high-volume pneumatic tools.

• With an electric start engine, you get consistent power at the push of a button — no pull cords, no hassle.

• Built-in idle control lowers fuel use and noise when your tools stop firing.

• All service points are easy to access, and the tank design keeps PSI steady between cycles.

• This unit gives you the best of both worlds: shop-grade performance and field-ready durability.

• See all our 20 Gallon Air Compressors for industrial-grade options


• Compare more Two Stage Air Compressors across tank sizes

FAQ

Q: What’s the benefit of electric start on this compressor?
A: No more pull-starting — just turn the key and go, even in cold or wet conditions.

Q: How does this perform compared to smaller compressors?
A: It delivers more CFM, longer tool cycles, and reduced cycling thanks to the 20 gallon tank and two-stage pump.

Q: Can I mount this to my service trailer?
A: Absolutely — the frame is balanced for mobility but tough enough for semi-permanent mounting.

Q: Is this a good choice for dual-tool operation?
A: Yes — with 17.2 CFM and a 20 gallon tank, it's made for high-demand tool setups.

Learn more about this 20 gallon air compressor and browse similar models in our Industrial Gas Compressor Collection

• Tank Size: 20 Gallons

Max PSI: 175 PSI

Engine: 300cc Mi-T-M OHV

CFM: 17.2 @ 175 PSI

Drive Type: Belt Drive

Starting System: Electric Start (battery, box, and cables not included)

Weight: Approximately 306 lbs (Net), 356 lbs (Shipping)

Dimensions: 46" L x 26" W x 39.5" H

Pump Type: Cast iron cylinder, splash-lubricated

Additional Features: Stainless-steel braided discharge hose, large canister intake filter, oil level sight indicator

Best For:

• Construction Sites – Ideal for framing, roofing, and operating pneumatic tools requiring high PSI.
• Industrial Applications – Provides consistent high-pressure air for shop and machinery use.
• Service Trucks & Remote Job Sites – Gas-powered design ensures reliable operation without electricity.

The Mi-T-M AM2-SM09-20ME is engineered for professionals who require a reliable and powerful air compressor with substantial air storage. Its 20-gallon ASME receiver tank offers ample air capacity, reducing the frequency of motor restarts and providing a steady air supply for demanding tasks.

The durable cast iron pump, combined with the robust 300cc Mi-T-M OHV engine, ensures longevity and dependable performance.

The electric start feature adds convenience, making it easier to operate, especially in demanding environments. The sturdy frame and flat-free tires enhance portability, making it suitable for various job sites.

Whether you're in construction, industrial maintenance, or field service, this compressor delivers the power and capacity needed to keep your operations running smoothly.
