Single Stage Compressor Generator Combo – Mi-T-M 8 Gallon, Honda GX200, 1800W (AG1-PH65-08M1)
Single Stage Compressor Generator Combo – Mi-T-M 8 Gallon, Honda GX200, 1800W (AG1-PH65-08M1) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Free Standard Ground Shipping for all orders above $100
Single Stage Compressor Generator Combo – Mi-T-M 8 Gallon, Honda GX...
Quick Facts
Quick Facts
Portable power & air in one combo unit

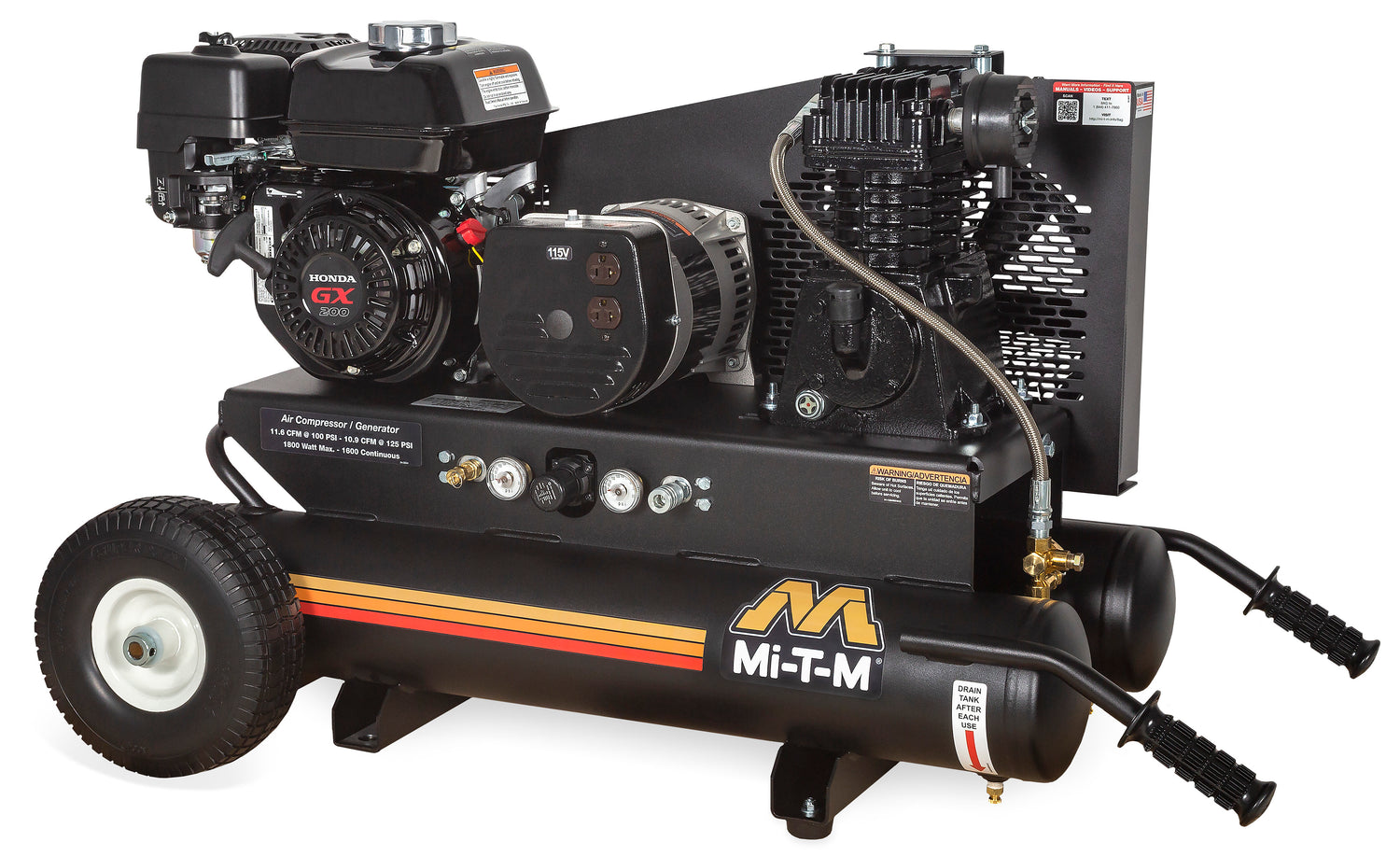

The Mi-T-M AG1-PH65-08M1 is a rugged 2-in-1 solution that combines a single stage air compressor with a 1800-watt generator, all in a mobile 8-gallon gas-powered unit. Built for contractors, remodel crews, and mobile techs who need reliable air and electric power in remote locations, this combo eliminates the need to haul two machines.
Powered by a 196cc Honda GX200 OHV engine, this unit delivers 11.9 CFM at 90 PSI while also providing up to 1800 watts of electricity through a brushless generator. The dual-function setup is ideal for running air tools and small power tools simultaneously from a single fuel-efficient source.
Built on a steel powder-coated frame with flat-free tires, the AG1-PH65-08M1 is mobile, rugged, and compact enough to fit in trucks, trailers, or tight jobsite environments.
Specifications
| Feature | Details |
|---|---|
| CFM @ 90 PSI | 11.9 |
| CFM @ 125 PSI | 10.9 |
| Generator Max Output | 1800 watts |
| Continuous Output (Comp On) | 600 watts |
| Continuous Output (Comp Off) | 1600 watts |
| Engine | Honda GX200, 196cc OHV |
| Pump Type | Cast iron, single stage, belt driven |
| Tank Capacity | 8 gallons (horizontal) |
| Dimensions (L x W x H) | 44.5" x 26" x 27" |
| Shipping Dimensions | 49" x 30" x 36" |
| Shipping Weight | 291 lbs |
| Power Receptacles | Two NEMA 5-20R, 120V, 20A |
| Warranty – Engine | 3-Year Honda GX200 Warranty |
| Warranty – Compressor Pump | 2-Year Mi-T-M Limited Warranty |
| Warranty – Alternator | 2-Year Limited Warranty |
Features
-
Honda GX200 OHV engine – legendary durability and cold-start reliability
-
1800-watt brushless generator with copper windings
-
Belt-driven cast iron air compressor pump
-
Twin 8-gallon horizontal tanks for consistent air output
-
Flat-free tires for jobsite mobility
-
Powder-coated steel frame with 3/16" base plate for reduced vibration
-
Manual drain valves, regulator, and dual pressure gauges
-
Two NEMA 5-20R outlets for 120V tools and chargers
Benefits
Combines air power and electric power in one rugged unit
Reduces jobsite clutter and hauling needs
Ideal for running pneumatic tools and light electric tools simultaneously
Compact 8-gallon tank provides great airflow without bulk
Powered by trusted Honda engine for long life and low maintenance
Durable construction for service trucks, trailers, and field teams
Additional information
This single stage compressor generator combo is ideal for construction crews, mobile mechanics, utility companies, and field service professionals. Its dual power setup is especially useful in areas without access to electrical hookups or when generator space is limited.
Unlike other jobsite generators, the AG1-PH65-08M1 delivers consistent air pressure and usable electricity from the same fuel-efficient motor, maximizing performance and minimizing setup time.
Whether you're framing, roofing, sanding, or using impact tools, this combo unit gives you reliable power across the board.
FAQ
Q: Can this run air tools and electric tools at the same time?
A: Yes — it’s built specifically to handle both. The compressor delivers up to 11.9 CFM while the generator supports small electric tools or chargers.
Q: Is the generator safe for electronics?
A: Yes — the brushless generator outputs clean power with <6% total harmonic distortion, safe for most jobsite tools.
Q: What’s the fuel type?
A: It’s powered by gasoline — just like most Honda GX series engines.
Q: Can this be mounted in a service truck?
A: Absolutely. It’s built compact and durable for mobile installs.
